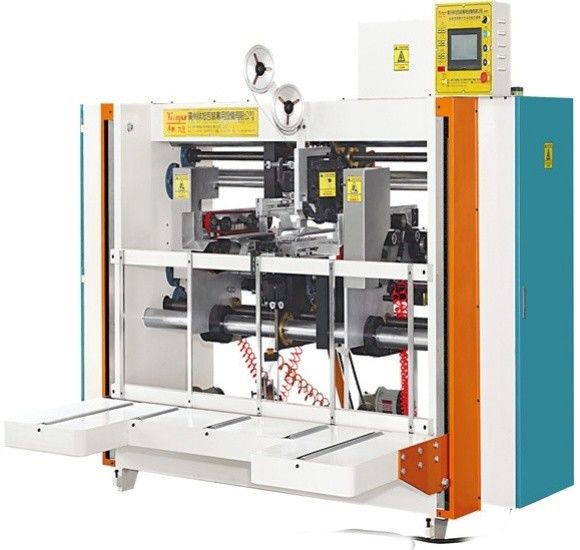

Semi Automatic Gluer And Stitcher Machine For Offset Printed Carton


1. The servo-driven semi-automatic stitching machine achieves a production speed of 500 nails per minute, with adaptable workpiece sizing capabilities.

1. Operator-friendly design enables rapid proficiency acquisition, requiring minimal training.

1. Accommodates both single and double sheet stitching configurations with flexible switching.

1. Integrated intelligent counter tracks production output automatically.

1. Infrared optical sensors autonomously calibrate the lifting platform's elevation for precision material feeding.

1. Engineered for operational safety and stability with minimized downtime, compatible with both single/double-wall box production (enhanced durability).

1. Electrically controlled adjustment system enables rapid dimensional modifications, complemented by manual baffle positioning.

1. Supports multiple fastening configurations: single-nail, double-nail, and reinforced-nail applications.

1. Automated paper feed section incorporates counting and bundling functionalities.

1. Computer-programmable control manages stitch spacing and cycling velocity through digital parameters.

1. Features a computerized interface with real-time diagnostics and error code displays.

1. Processes 3-7 ply carton materials (7-ply lidless configurations require custom tooling).

1. Critical load-bearing components utilize premium-grade bearings (FAG Germany/NSK Japan) as specified in spare parts documentation.

MAIN SPARE PARTS:

1.Japanese YASKAWA ELECTRIC servo motor .

2.Japanese OMRON PLC programmed.

3.Japanese YASKAWA ELECTRIC servo motor Control.

4.Japanese NSK Bearing. TR bearing with set.

5.Electric switch & contactor: Taiwan brand. Almost Electric: Germany SIEMENS and France Schneider.

6.Stitching head use Japanese molding design. CNC precision treated.

7.Blade and bottom mould used Germany Tungsten steel. And Japanese SKD11 alloy steel puncher pin that anti-friction and rot.

8.All transmission gears are hardened and ground, HRC 58-60°.

9.Germany Air-tec pneumatic cylinder adopted.

10.America BANNER/ Taiwan Fotek / Taiwan Wunlun Color Touch Screen.

MODEL

WM-X2-1800

Machine speed

500 Nail/min

Stitching distance(D)

30-120 mm

No. of Stitching

1-99钉

Paperboard thickness

3-10mm

Stitching wire

17#(2.0x1.0mm);18#(1.8x0.8mm)

Max (A+B)X2

3600mm

Min (A+B)X2

1060mm

Max Length(A)

1450mm

Min. Length(A)

350mm

Max Width(B)

800mm

Min Width(B)

180mm

Side mark(C)

125-500mm

Stitching flap

30-45mm

The first stitching

20-380mm

Voltage (Three variable)frequency)

380v 415V

Total power

12HP 5kw

Machine size

4000X3300mm

Machine weight

3000KG

feeding height

900mm

Nails Type

Single/ / / Double// // MIX/ // /
